E.F.I. Harness
Harness diagrams and connector codes.

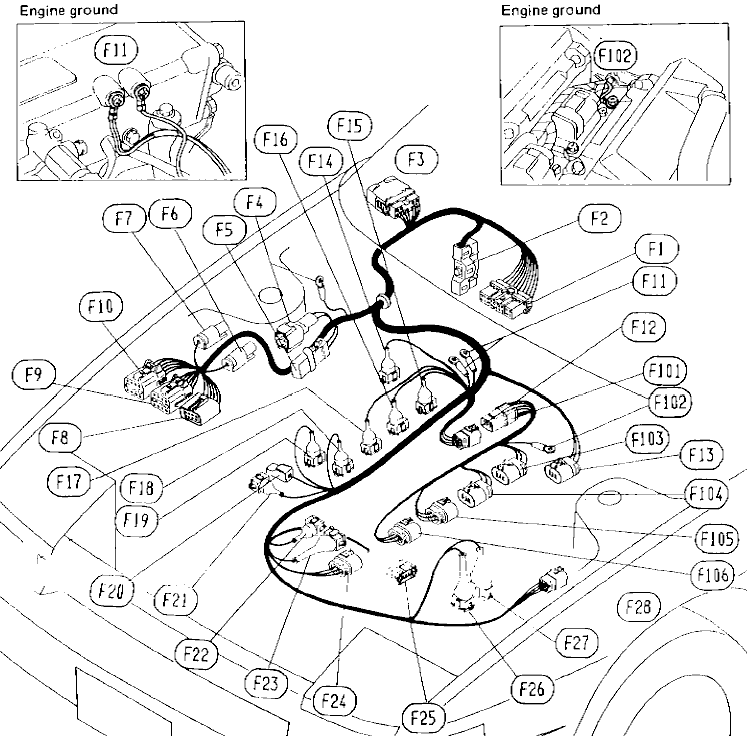

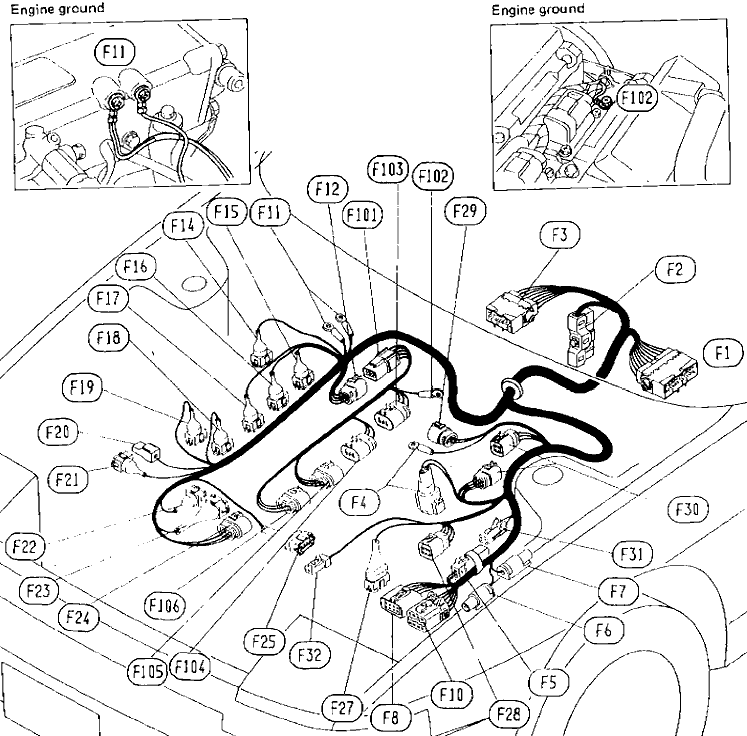

Diagrams
Connector Codes
| Code | Component |
|---|---|
| F1 | To main harness M53 |
| F2 | E.C.C.S. control unit |
Harness Side
|
|
| F3 | To engine room harness E116 |
| F4 | Front brake skid sensor R.H. (LHD) Front brake skid sensor L.H. (RHD) |
| F5 | Resistor |
| F6 | Check connector |
| F7 | Check connector |
| F8 | To engine room harness E8 (White) |
| F9 | To engine room harness E9 (Gray) (LHD) |
| F10 | To engine room harness E10 (Brown) |
| F11 | Engine ground |
| F12 | To ignition coil sub-harness F101 |
| F13 | Exhaust gas sensor (For model with catalyzer) (LHD) |
| F14 | F.I.C.D. solenoid valve |
| F15 | Injector-4 |
| F16 | Injector-3 |
| F17 | Injector-2 |
| F18 | Injector-1 |
| F19 | A.A.C. solenoid valve |
| F20 | Thermal transmitter |
| F21 | Engine temperature sensor |
| F22 | Air regulator |
| F23 | Throttle valve switch |
| F24 | Throttle sensor |
| F25 | Crank angle sensor |
| F26 | Air flow meter (For model with catalyzer) (LHD) |
| F27 | Air flow meter (Except for model with catalyzer) (LHD) Air flow meter (RHD) |
| F28 | Dropping resistor |
| F29 | Pressure regulator control solenoid valve |
| F30 | Power transistor unit |
| F31 | Dropping resistor (A/T model) |
| F101 | To E.F.I. harness F12 |
| F102 | Engine ground |
| F103 | Ignition coil-4 |
| F104 | Ignition coil-3 |
| F105 | Ignition coil-2 |
| F106 | Ignition coil-1 |
