LHD E.F.I. Harness | |||||
RHD E.F.I. Harness | |||||

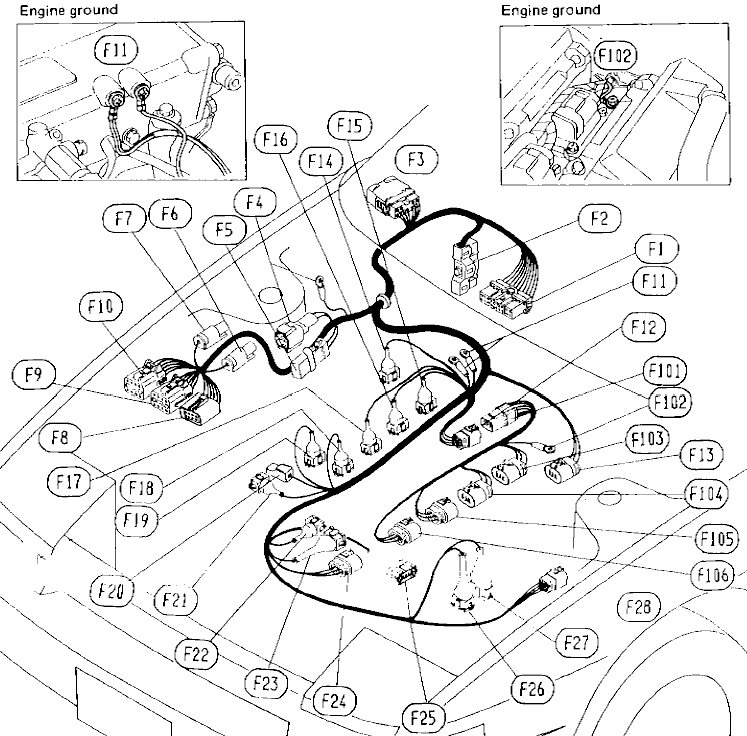

| F1 | To main harness M53 | ||||
| F2 | E.C.C.S. control unit | ||||
 Harness Side E.C.C.S. Connector Wiring E.C.C.S. Wiring Diagram | |||||
| F3 | To engine room harness E116 | ||||
| F4 | Front brake skid sensor R.H. (LHD) Front brake skid sensor L.H. (RHD) | ||||
| F5 | Resistor | ||||
| F6 | Check connector | ||||
| F7 | Check connector | ||||
| F8 | To engine room harness E8 (White) | ||||
| F9 | To engine room harness E9 (Gray) (LHD) | ||||
| F10 | To engine room harness E10 (Brown) | ||||
| F11 | Engine ground | ||||
| F12 | To ignition coil sub-harness F101 | ||||
| F13 | Exhaust gas sensor (For model with catalyzer) (LHD) | ||||
| F14 | F.I.C.D. solenoid valve | ||||
| F15 | Injector-4 | ||||
| F16 | Injector-3 | ||||
| F17 | Injector-2 | ||||
| F18 | Injector-1 | ||||
| F19 | A.A.C. solenoid valve | ||||
| F20 | Thermal transmitter | ||||
| F21 | Engine temperature sensor | ||||
| F22 | Air regulator | ||||
| F23 | Throttle valve switch | ||||
| F24 | Throttle sensor | ||||
| F25 | Crank angle sensor | ||||
| F26 | Air flow meter (For model with catalyzer) (LHD) | ||||
| F27 | Air flow meter (Except for model with catalyzer) (LHD) Air flow meter (RHD) | ||||
| F28 | Dropping resistor | ||||
| F29 | Pressure regulator control solenoid valve | ||||
| F30 | Power transistor unit | ||||
| F31 | Dropping resistor (A/T model) | ||||
| F101 | To E.F.I. harness F12 | ||||
| F102 | Engine ground | ||||
| F103 | Ignition coil-4 | ||||
| F104 | Ignition coil-3 | ||||
| F105 | Ignition coil-2 | ||||
| F106 | Ignition coil-1 | ||||
